Product Description

Pig gestation positioning column description

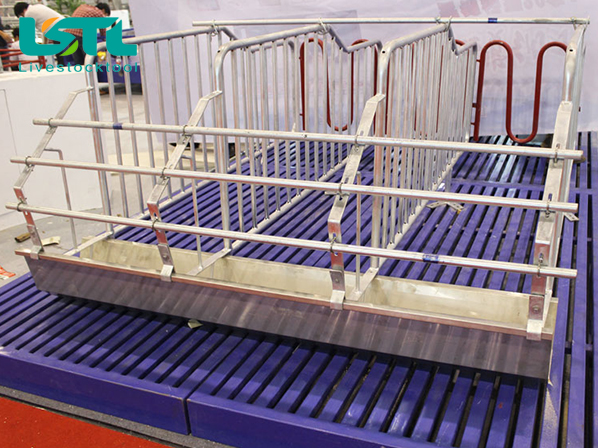

Pig gestation positioning column

Pig gestation positioning column is a positioning bar applied to individual sows or boar breeding; it can limit the range of activities of pigs, allowing pigs to grow faster, and at the same time facilitate feeding, feeding, cleaning and scouring. Made of GB galvanized pipe and integral hot-dip galvanizing, the anti-rust effect is very good; the shape is all adopted standpipe, more solid, to the greatest degree to ensure the stability of the pigshed. The mono-pig is applied to empty sows and pregnant sows to effectively avoid feeding, biting and favoring the sow's miscarriage when the pregnant sow feeds, and the concentration bar feed, drinking water and manure handling are all concentrated. It also has a small footprint, a small amount of sewage, and is easy to implement mechanized management.

Pig gestation positioning column advantage

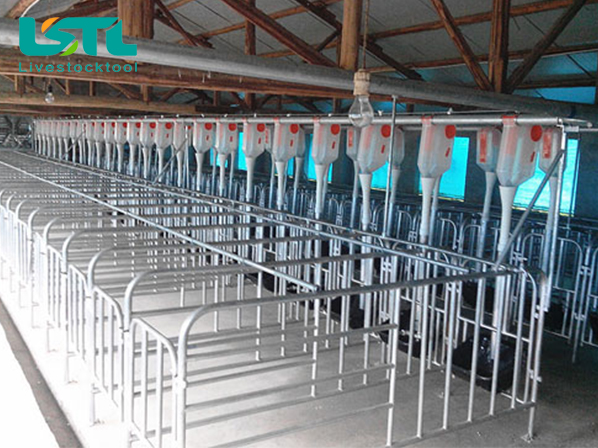

Pig gestation positioning column

(1) Improve sow's cardiopulmonary function: Sows in late pregnancy can enter into the activity column (or small group activity column) from the limit bar to increase the amount of activity, enhance blood circulation in the body, and enhance cardiopulmonary function. The

(2) Improve the sow's intestinal function: Increased sow activity, increased blood circulation, and increased intestinal motility during the second trimester of pregnancy reduce sow constipation during late pregnancy. The

(3) To increase the birth weight and vitality of suckling piglets: The increase in the activity of late sows in pregnant sows also strengthens the blood circulation of the mother's placenta and the fetus, which contributes to the rapid and healthy growth of the fetus and is beneficial to improving the birth weight and vitality of the suckling piglet. The

(4) Raising the milking power of sows: In the late pregnancy, the sows are reared in the single activity column, reducing many stress factors in the limit column. As the blood circulation in the body is enhanced, the normal development of the mammary gland is also enhanced, and the postpartum milking power is increased. The improvement laid the foundation. The

(5) Reducing the occurrence of sow limb and foot disease: Increased activity, reduced stress, and increased overall function of sows can significantly reduce the incidence of sow limb and foot disease.

Pig gestation positioning column structure

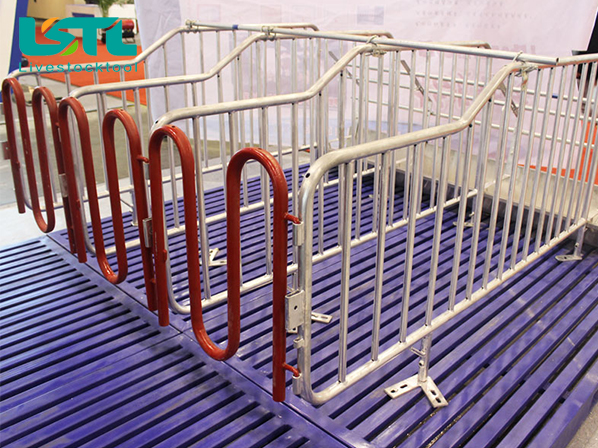

Pig gestation positioning column

The pig gestation positioning column is composed of the positioning bar side bar, positioning bar fence, front door of positioning bar, back door of positioning bar, composite floor, horizontal bar, middle foot, side foot and screw.

Pig gestation positioning column application


Application: Applicable to the gestation positioning column for fixed-feeding sows during pregnancy. Each set of products of the same type at -25 can refer to this manual. Basic requirements for equipment installation: In order to ensure the normal use of the positioning bar and guarantee its service life, the building of the pig house needs to meet the following conditions:

This product must be installed on the cement ground platform where the pig house has been built, and the platform needs to be flat.

Pig gestation positioning column  Installation method:

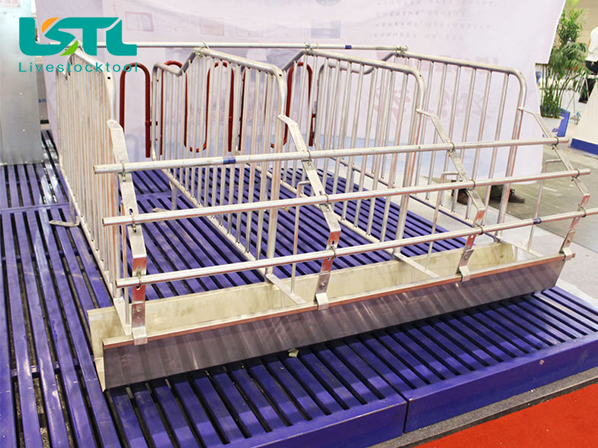

Pig gestation positioning column

1. According to the process flow chart to control the distance of the walkway, put the legs to the most ends of the unit, pull the positioning line, requiring the distance between the two sides of the foot is equal, and the diagonal line should also be equal.

2. Place the other legs in alignment with the positioning line. The distance between the lateral legs is determined according to the width of the composite floor. The distance between the leg and the middle leg is determined by the length of the composite floor.

 3. Place the composite flooring horizontally between the foot and the middle foot. Tighten with 11 screws to provide 10 sows. Sows were placed in the positioning column in the prenatal 7 days before delivery.
